CUSTOMIZED YOUR BOARDS
We Are Your Better Option
As a manufacturer and supplier of SUP boards and surfboards, we produce a wide range of board styles and provide OEM/ODM services for customers worldwide.
With over 17 years of manufacturing experience, we have supported many overseas brands and customers with reliable service, stable quality, and flexible customization solutions.
If you are looking for custom-made boards with solid construction and dependable production support, 4S Sports is ready to help bring your board ideas into production.
Below are some of the main processes involved in manufacturing a board.
Note: The processes shown below are only part of our customization capabilities. We can also support custom shapes, materials, constructions, graphics, packaging, and other OEM/ODM requirements. Please feel free to contact us for more details.
About core
For SUP boards, we use EPS cores in different densities according to the board type and performance requirements. For race boards, a lighter EPS core can be used to reduce the overall board weight and improve speed and performance on the water.
For surfboards, we offer both PU and EPS core options. Imported PU foam from Austria is also available for customers who require specific material standards or board performance. EPS core is another popular option, especially for lightweight construction and epoxy surfboard designs.
For foil boards, we can customize the core structure according to the board type, target weight, strength requirements, and riding style.
Lightweight EPS foam is commonly used as the main core material to keep the board light and responsive. For high-stress areas such as the foil box, standing area, handle position, rail area, and other load-bearing sections, we can add different reinforcement materials, including high-density foam, PVC foam, PET foam, wood inserts, balsa wood, bamboo veneer, fiberglass, carbon fiber, or other structural reinforcement solutions.
These materials can be combined with different lamination and sandwich constructions to improve board stiffness, foil box strength, impact resistance, compression resistance, and long-term durability.
The final core den
sity and reinforcement layout can be adjusted based on the customer’s board design, foil system, intended use, and target price.

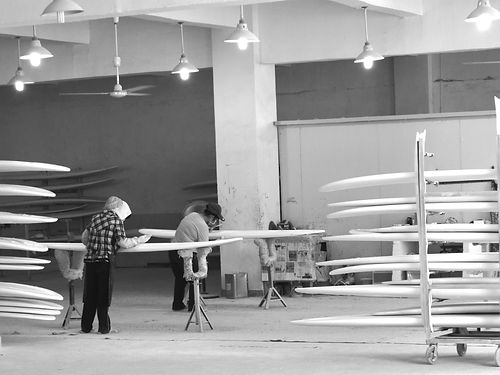

Manufacture a good board, it should base on a skilled shaper, so shaping is a very important produce process, all of our shaper have more than 10 years for shaping in this industry, We also have 3 AKU shapers imported from Australia.AKU Shaper make all the shapes are more standard, improve the precision of shape also improved our produce capacity.
Usually, our customers will provide the project files for AKU Shaper, some customer don't have this kind of files, but we can set up a new files for AKU Shaper base on the data of what customer need and want.
About LAMINATION
-
Lamination is the most important produce process for a board, there are some important points we have to pay more attention.
-
Lamination, the most important for a board, because that's the "basic" of construction, it will be affected by fabrics, epoxy resin, and handle operation.
-
Fabric: good quality fabric like Fiberglass, Carbon fiber, Kevlar... etc, we have many different fabrics for choose, most of them them are imported Japan.
-
Epoxy resin: we choose high quality epoxy for all of our boards, the epoxy not easy to discolor, to make board looks still like a new one, even used a longtime. More stronger, good epoxy not only good fit for fiberglass but also can provide stronger protection. More clearer, high quality epoxy also looks more clearer, so we use them to transparent surfboards.
-
Handle operation: all of our lamination workers are skilled and have around 7 years to make lamination process, all of our workers are have high quality awareness. We also have QA to check each step ensure they are meet quality standard.
In order to control the curing time of epoxy resin, all of our lamination workshop have big power air conditioners to make sure our workshop will keep 24 degree centigrade in summer to stop epoxy resin curing speed too fast. On the contrary, we also need keep our workshop around 25 to 27 degree centigrade to make sure the epoxy resin can curing in time and have a good cured state. Because our boards need a perfect curing time.
Each step we will wait epoxy cured enough, then we can begin to sanding process, as a skilled worker also can figure out what state of board was cured enough.Keep each step of epoxy cured enough, make sure each layer of fiberglass(fabric) is smooth enough, make sure all the fiberglass(fabric) is saturated with epoxy resin, it's easy to find it and avoid it.
molded FOIL board
To provide lighter and stronger boards for our customers, especially for foil board products, we have added a molded board production line.
Molded construction allows the board to have a more consistent structure, improved strength-to-weight performance, and better production efficiency compared with traditional hand-shaped and hand-laminated construction. It is especially suitable for foil boards that require higher stiffness, stronger foil box reinforcement, and long-term durability.
This process helps us offer stronger and more stable board construction while keeping the production cost more competitive for OEM/ODM projects.
Custom Foil SYSTEM Development
Free design support and sample development can be provided for qualified OEM/ODM projects
The foil is one of the most important components of a foil board system.
Over the past six years, we have designed and manufactured many different foil models for our customers, helping them meet different performance, riding style, and market requirements.
Through these OEM/ODM projects, we have gained valuable experience in foil design, production, tooling, and product development.
We can support customers with foil design, sample development, and mold-making services. With our in-house tooling capability, we can help reduce development time, improve communication efficiency, and save customers significant time and cost during the product development process.
Whether customers need a new foil design or want to develop a customized foil system based on their own concept, we are ready to provide practical support from design to production.
WHY CHOOSE US
Mature and stable supply chain
All of our suppliers are strict screened and we also have a longtime of cooperation. Because we have to make sure they can provide high quality raw materials and components to us. A mature and stable supply chain also can help us keep our quality stable and also can reduce our cost, so we can quote a competitive price with our customers and also can provide 2 years quality warranty.
Advanced workshop and experienced staff
We have more than 10000 square meter modern workshops, each workshop have advanced dust pelletizing system and air conditioner system. All of our workshops obtained from the Gov issued environmental assessment certificate.
All of our workers are skilled and experienced in this industry, some of them almost work in this industry more than 20 years. Each step(process) will checked by our QA to make sure they good quality then will send to next step to continue producing.
Advanced workshop and experienced staff help us make our quality is good. strict QA checking system make sure all the board will match our quality standard.
All of international sales are good at English communication and they also have rich Pro knowledge for SUP and Surf. We provide 6*12 efficient work hours for our customers to make sure you can contact and find us anytime.
Diversified payment methods
Different payment items available to make sure our customers have enough cash flow. Amazing service
Amazing service
6*12 work hours, luxury car (MPV) pick up from Hong Kong and any airport in Guangdong province, we provide car to our customers when they have a trip in our factory or if customer will visit other suppliers.
Fantastic after sales service
All of our boards we provide 2 years quality warranty, also include the components like fins, paddles, and caver bags.
We provide more than 90 days free stock service. And drop-shipping for worldwide
Free sample, and only take 7 days will complete to ship.
